스프링을 모르는 사람들에게. CRUD 1
시작하기전에
- STS나 jdk는 알아서 구글링 해서 준비할 것.
- STS3
- jdk 11
프로젝트 생성
프로젝트 생성 완료.
프로젝트 기본 세팅

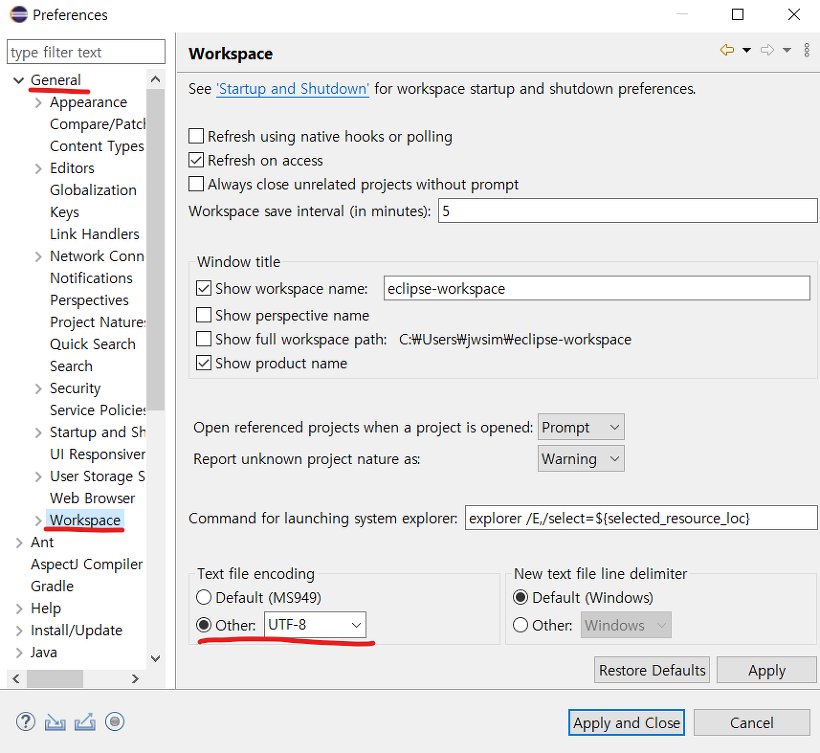

window - preferences - General - Workspace 에서 Other: UTF-8로 변환

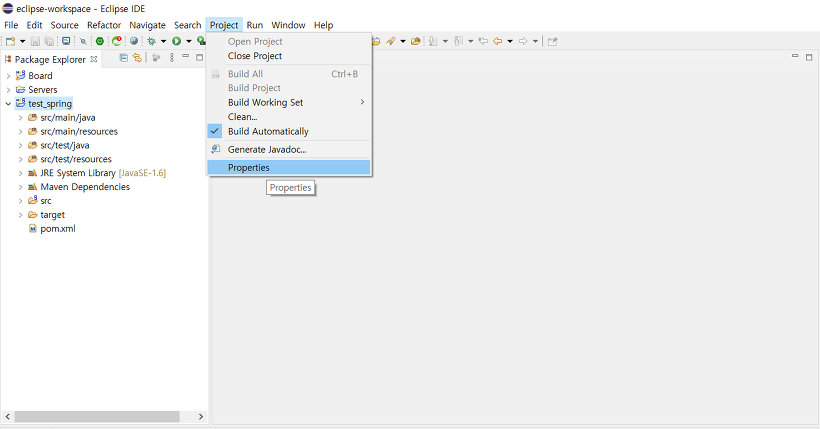

Project - properties - Resource 에서도 UTF-8 로 변환

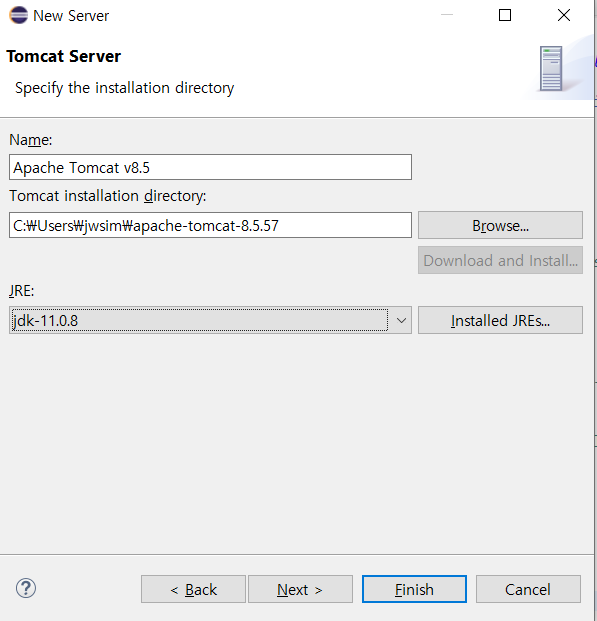

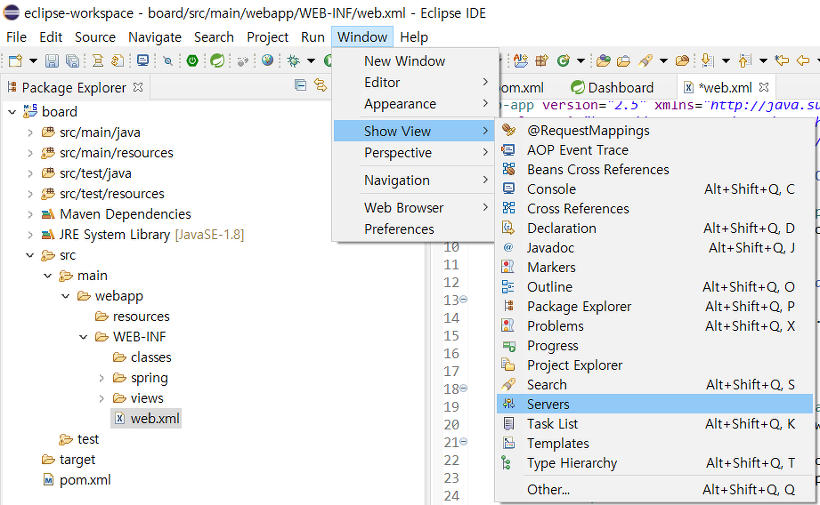

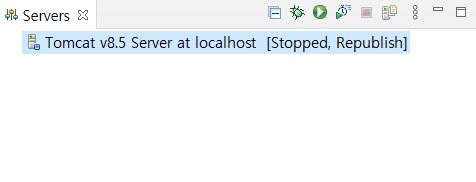

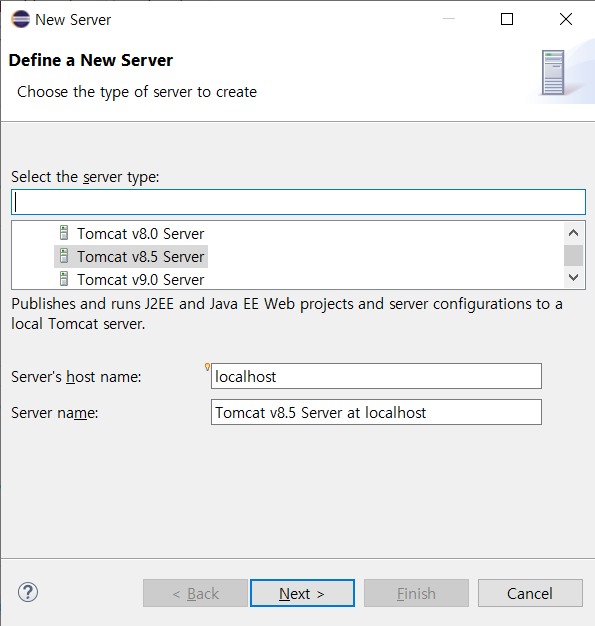

톰캣연동
톰캣버전은 딱히 상관없다.
port 번호는 8090이든 8080이든 상관없음.

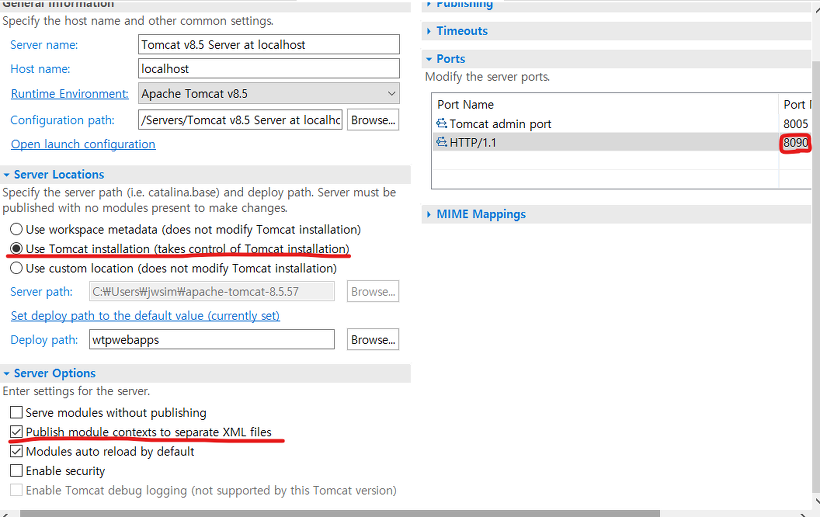

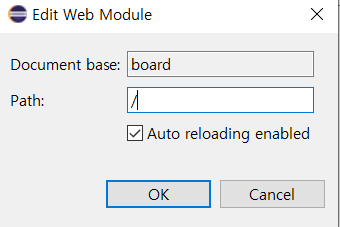

서버 더블클릭하고 Overview 와 Modules 둘 중에 Modules 를 누르면 위의 창이 나온다.
이렇게 바꿔주자.
한글이 안나오고 깨지는 경우가 있을텐데 그건 home.jsp 파일에 UTF-8 설정을 안해줘서 그렇다. 아직까진 상관 없다.
DB 생성
create database test;
use test;
create table i_can_do_it(
no int not null auto_increment primary key,
id char(50) not null unique,
name char(50),
goal char(255),
date date,
time time
);
insert into i_can_do_it(id, name, goal, date, time) values ('0113', '짱구', '부문장', now(), now());
insert into i_can_do_it(id, name, goal, date, time) values ('6378', '철수', '실장', now(), now());
insert into i_can_do_it(id, name, goal, date, time) values ('4963', '훈이', '파트장', now(), now());
insert into i_can_do_it(id, name, goal, date, time) values ('2978', '맹구', '사장', now(), now());
insert into i_can_do_it(id, name, goal, date, time) values ('7542', '유리', '정직원', now(), now());
select * from i_can_do_it;
web.xml 설정
- 스프링 웹 프로젝트가 로딩될 때 가장 먼저 참조 되는 파일이다. 프로젝트의 환경 설정 정보를 저장하고 있는 파일이라고 생각하면 된다.
- 그대로 복사해서
web.xml에 기존 내용을 다 지우고 이 코드를 넣어준다
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee https://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">
<!-- The definition of the Root Spring Container shared by all Servlets and Filters -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>/WEB-INF/spring/root-context.xml</param-value>
</context-param>
<!-- Creates the Spring Container shared by all Servlets and Filters -->
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- Processes application requests -->
<servlet>
<servlet-name>appServlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>/WEB-INF/spring/appServlet/servlet-context.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>appServlet</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- 한글 처리를 위한 인코딩 필터 -->
<filter>
<filter-name>encoding</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>UTF-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encoding</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
</web-app>
VO 생성
- DB의 테이블 같은 형태의 VO(Value Object)를 생성하는 과정이다.

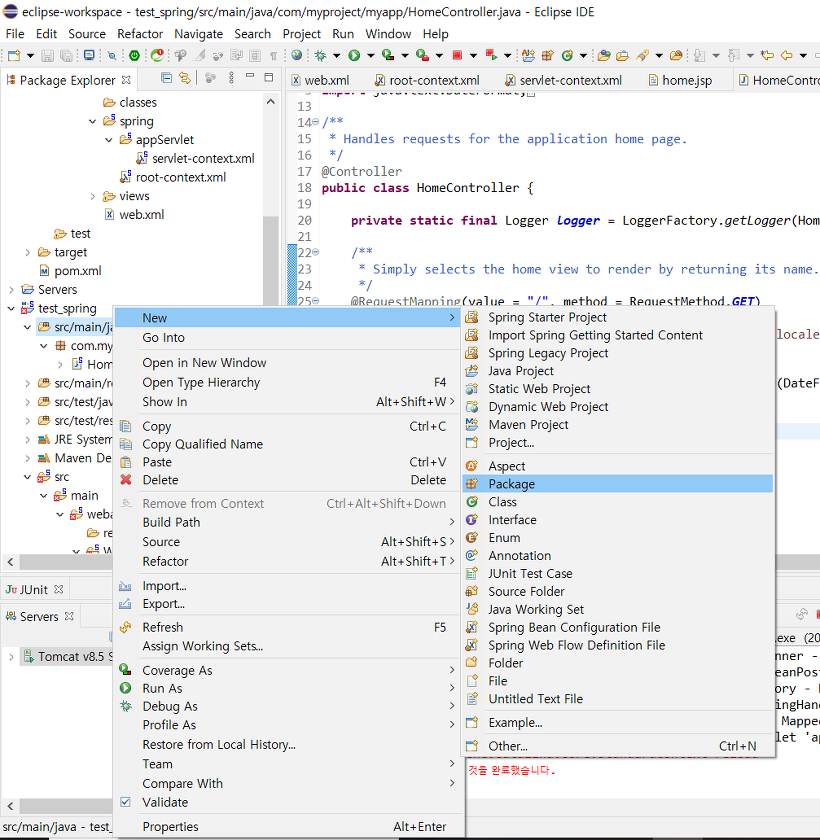

- src/main/java 하위에 생성해준다.

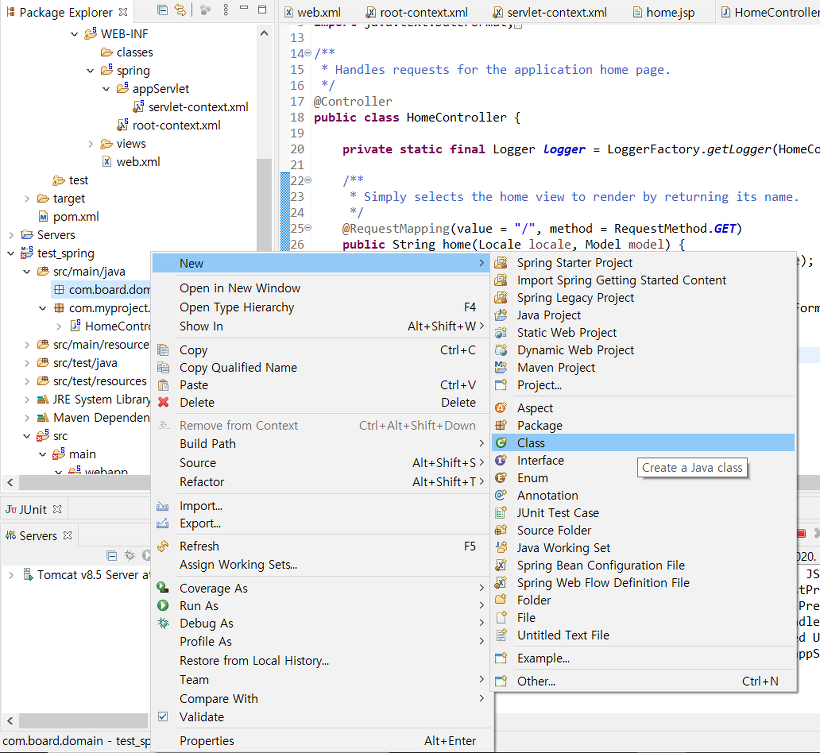

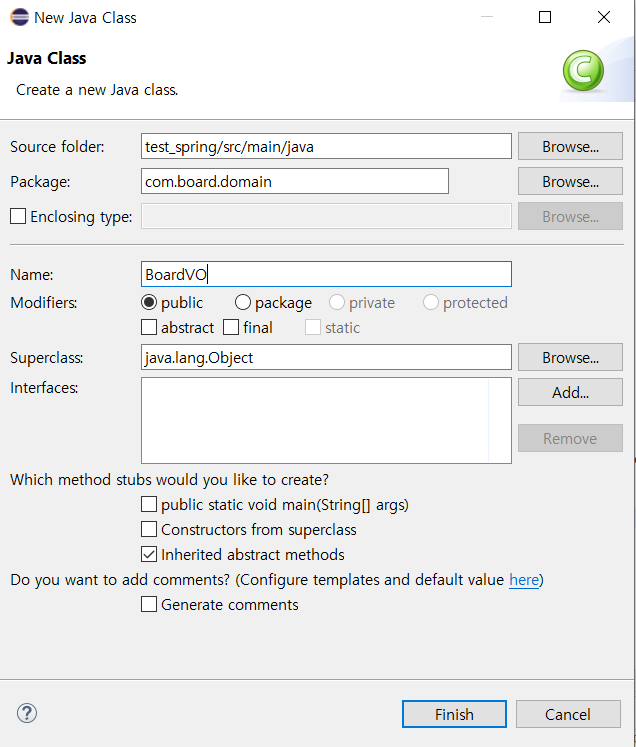

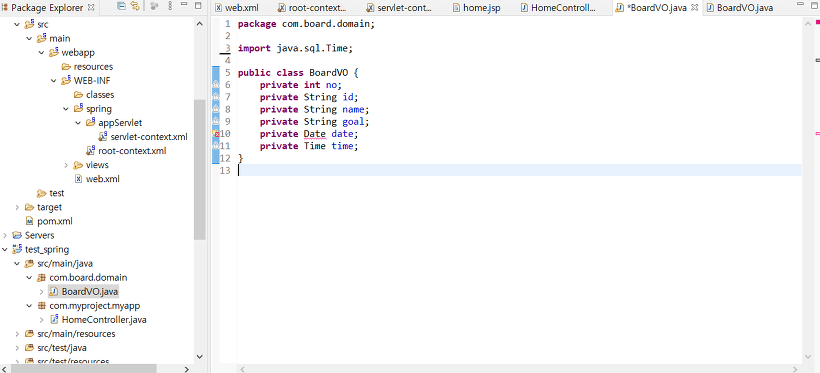

방금 만든 패키지 안에 class 파일 생성
Date는 java.util.Date Time은 java.sql.Time로 임포트 해준다.

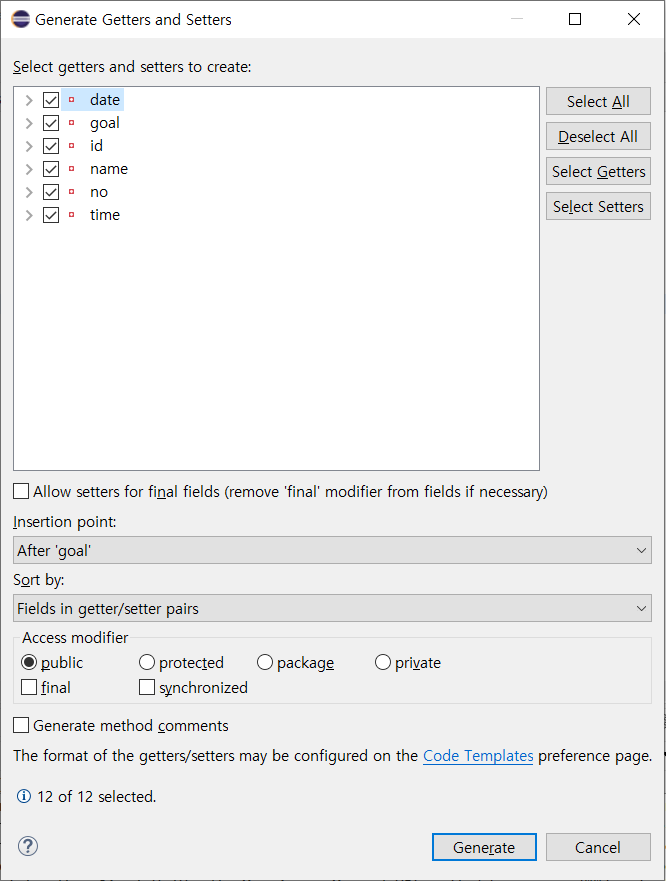

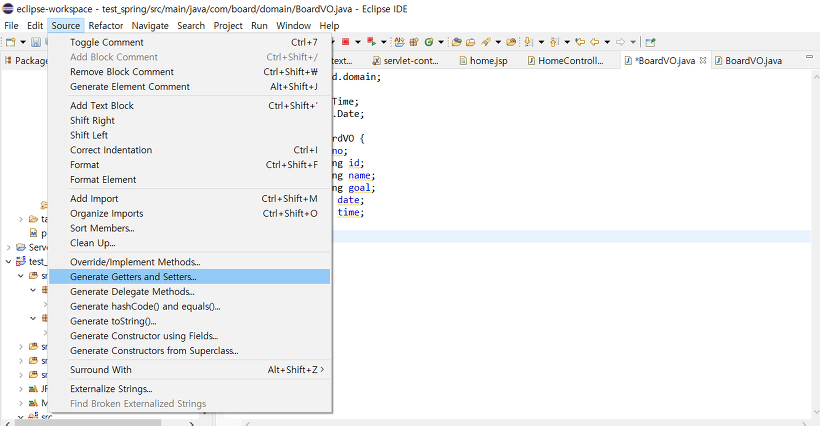

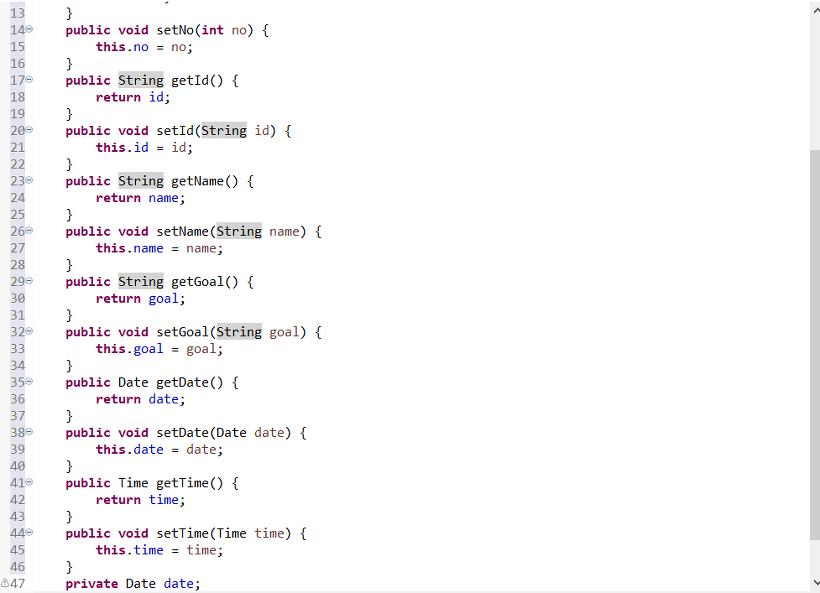

Getter and Setter 는 클래스 안에 private로 멤버 변수를 숨기고 public으로 개방된 메소드를 통해 이 변수에 간접적으로 접근하는 방법이다.
끝.
pom.xml
- 기존에 있던 내용들을 다 지우고 이걸 복붙해준다.
- 변경된 내용은 자바 버전을 1.8로 바꿨고 스프링 프레임워크를 4.3.18버전으로 바꾼 후 밑에 내려가보면
<!-추가-->라는 부분에서부터 mysql, mybatis등을 추가해주었다.
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/maven-v4_0_0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.myproject</groupId>
<artifactId>myapp</artifactId>
<name>test_spring</name>
<packaging>war</packaging>
<version>1.0.0-BUILD-SNAPSHOT</version>
<properties>
<java-version>1.8</java-version>
<org.springframework-version>4.3.18.RELEASE</org.springframework-version>
<org.aspectj-version>1.6.10</org.aspectj-version>
<org.slf4j-version>1.6.6</org.slf4j-version>
</properties>
<dependencies>
<!-- Spring -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>${org.springframework-version}</version>
<exclusions>
<!-- Exclude Commons Logging in favor of SLF4j -->
<exclusion>
<groupId>commons-logging</groupId>
<artifactId>commons-logging</artifactId>
</exclusion>
</exclusions>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>${org.springframework-version}</version>
</dependency>
<!-- AspectJ -->
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjrt</artifactId>
<version>${org.aspectj-version}</version>
</dependency>
<!-- Logging -->
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-api</artifactId>
<version>${org.slf4j-version}</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>jcl-over-slf4j</artifactId>
<version>${org.slf4j-version}</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-log4j12</artifactId>
<version>${org.slf4j-version}</version>
<scope>runtime</scope>
</dependency>
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.15</version>
<exclusions>
<exclusion>
<groupId>javax.mail</groupId>
<artifactId>mail</artifactId>
</exclusion>
<exclusion>
<groupId>javax.jms</groupId>
<artifactId>jms</artifactId>
</exclusion>
<exclusion>
<groupId>com.sun.jdmk</groupId>
<artifactId>jmxtools</artifactId>
</exclusion>
<exclusion>
<groupId>com.sun.jmx</groupId>
<artifactId>jmxri</artifactId>
</exclusion>
</exclusions>
<scope>runtime</scope>
</dependency>
<!-- @Inject -->
<dependency>
<groupId>javax.inject</groupId>
<artifactId>javax.inject</artifactId>
<version>1</version>
</dependency>
<!-- Servlet -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>2.5</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.1</version>
<scope>provided</scope>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
<!-- Test -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.7</version>
<scope>test</scope>
</dependency>
<!-- 추가 -->
<!-- mysql -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.26</version>
</dependency>
<!-- org.mybatis/mybatis -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.4.1</version>
</dependency>
<!-- mybatis-spring -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>1.3.0</version>
</dependency>
<!-- spring-jdbc -->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>${org.springframework-version}</version>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<artifactId>maven-eclipse-plugin</artifactId>
<version>2.9</version>
<configuration>
<additionalProjectnatures>
<projectnature>org.springframework.ide.eclipse.core.springnature</projectnature>
</additionalProjectnatures>
<additionalBuildcommands>
<buildcommand>org.springframework.ide.eclipse.core.springbuilder</buildcommand>
</additionalBuildcommands>
<downloadSources>true</downloadSources>
<downloadJavadocs>true</downloadJavadocs>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>2.5.1</version>
<configuration>
<source>1.6</source>
<target>1.6</target>
<compilerArgument>-Xlint:all</compilerArgument>
<showWarnings>true</showWarnings>
<showDeprecation>true</showDeprecation>
</configuration>
</plugin>
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>exec-maven-plugin</artifactId>
<version>1.2.1</version>
<configuration>
<mainClass>org.test.int1.Main</mainClass>
</configuration>
</plugin>
</plugins>
</build>
</project>

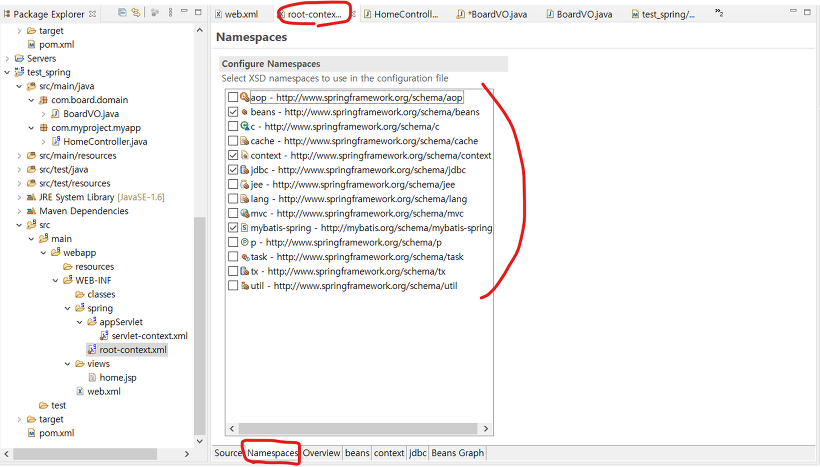

root-context.xml
이 항목 그대로 체크하고 저장해준다.

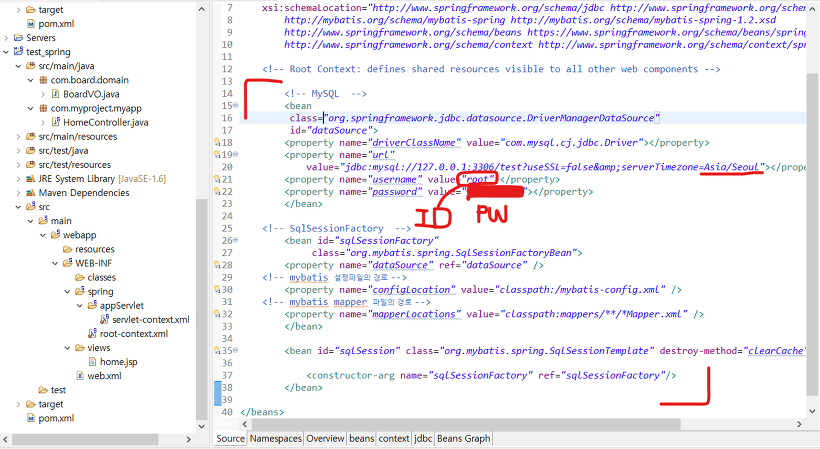

이어서 같은 root-context 에 source 로 들어가서 mysql 연동을 시킨다. ID 와 PW 부분은 각자의 ID와 PW 를 입력하면 된다.
봐도 모르겠으면 밑에 있는 코드를 복사 후 기존 내용을 지우고 붙여넣고 비밀번호 부분만 수정해주자.
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:jdbc="http://www.springframework.org/schema/jdbc"
xmlns:mybatis-spring="http://mybatis.org/schema/mybatis-spring"
xsi:schemaLocation="http://www.springframework.org/schema/jdbc http://www.springframework.org/schema/jdbc/spring-jdbc-4.3.xsd
http://mybatis.org/schema/mybatis-spring http://mybatis.org/schema/mybatis-spring-1.2.xsd
http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
<!-- Root Context: defines shared resources visible to all other web components -->
<!-- MySQL -->
<bean
class="org.springframework.jdbc.datasource.DriverManagerDataSource"
id="dataSource">
<property name="driverClassName" value="com.mysql.cj.jdbc.Driver"></property>
<property name="url"
value="jdbc:mysql://127.0.0.1:3306/test?useSSL=false&serverTimezone=Asia/Seoul"></property>
<property name="username" value="root"></property>
<property name="password" value="비밀번호"></property>
</bean>
<!-- SqlSessionFactory -->
<bean id="sqlSessionFactory"
class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource" />
<!-- mybatis 설정파일의 경로 -->
<property name="configLocation" value="classpath:/mybatis-config.xml" />
<!-- mybatis mapper 파일의 경로 -->
<property name="mapperLocations" value="classpath:mappers/**/*Mapper.xml" />
</bean>
<bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate" destroy-method="clearCache">
<constructor-arg name="sqlSessionFactory" ref="sqlSessionFactory"/>
</bean>
</beans>

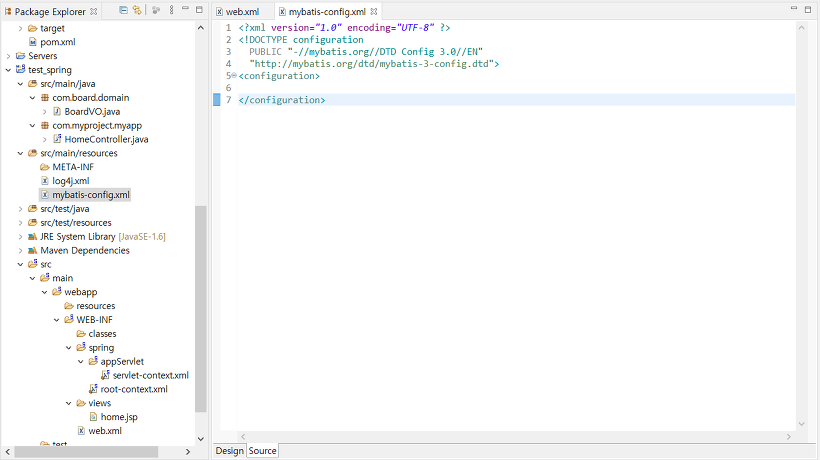

mybatis-config.xml
- src/main/resources 하위에
mybatis-config.xml을 만들어준다.
이렇게 작성해준다.
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
</configuration>

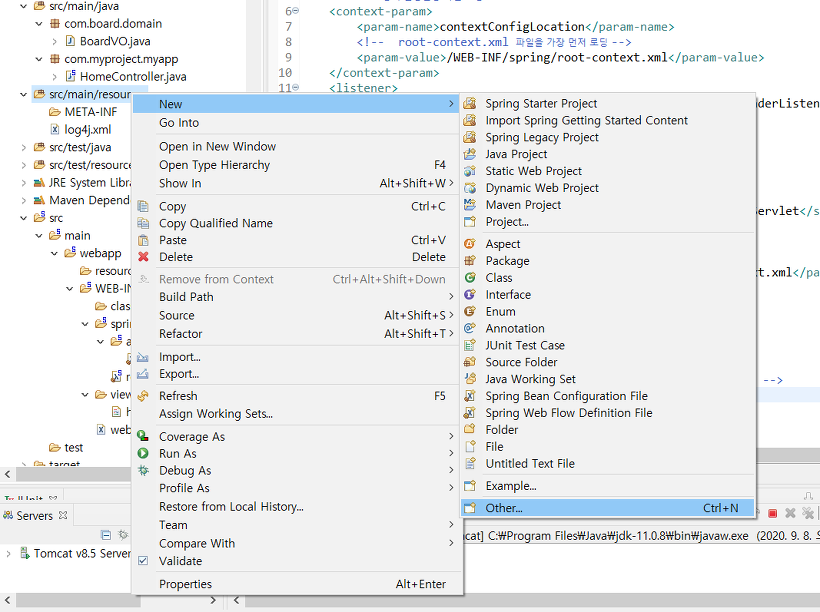

mappers 생성

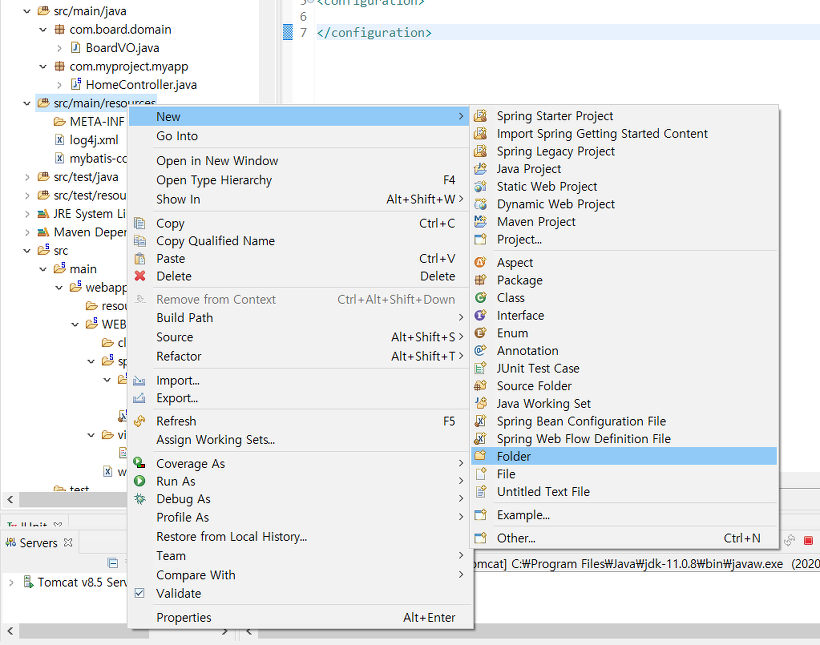

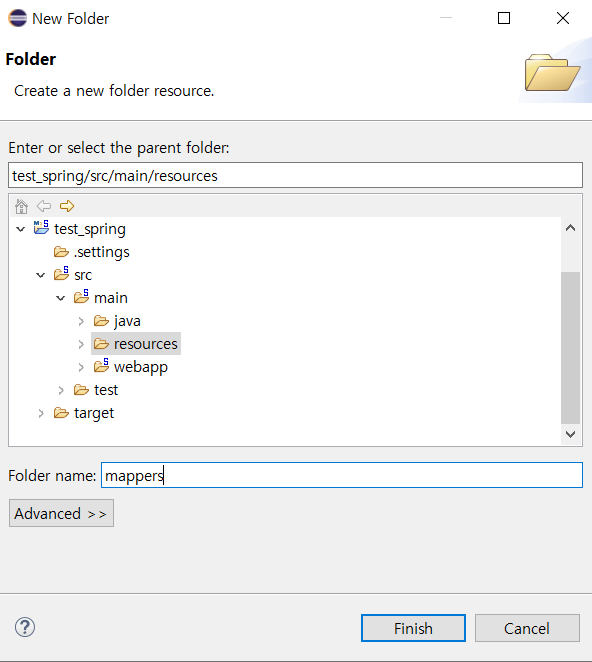

- src/main/resources 하위에 폴더를 만들어준다.
- 나중에 mapper파일에 쿼리문을 작성한다.

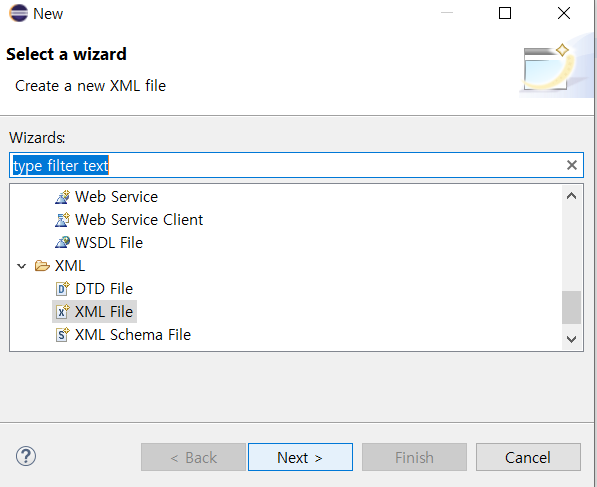

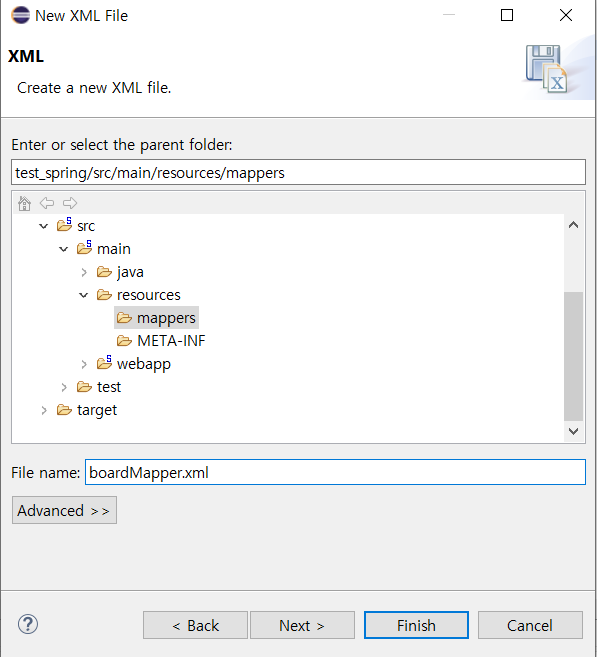

xml 파일도 만들어준다.
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.board.mappers.board">
</mapper>

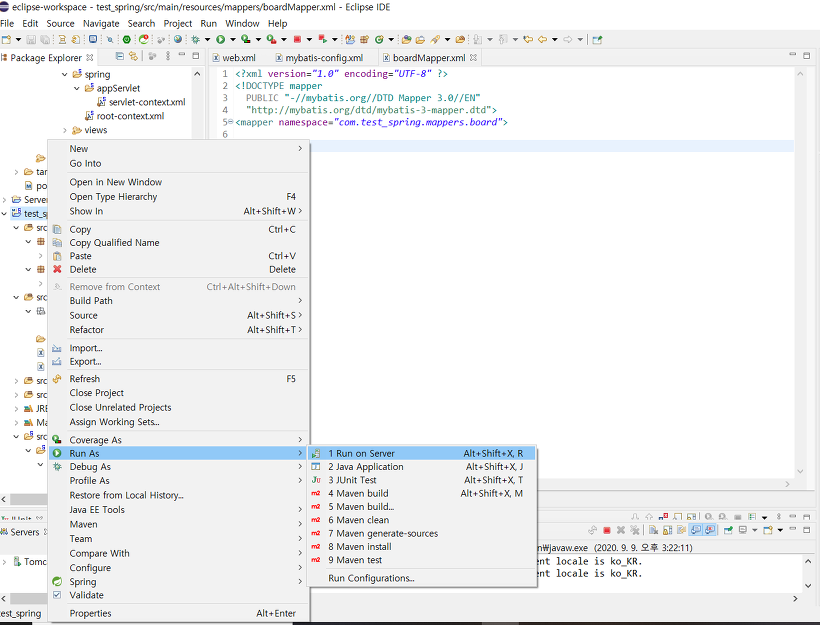

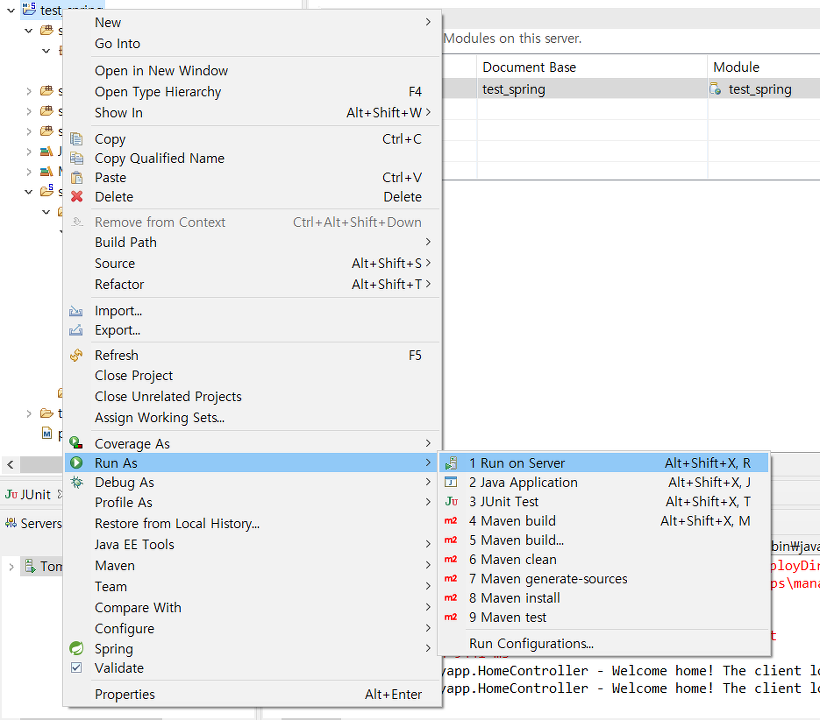

테스트
만약 실행이 되지 않는다면 mybatis-config.xml과 mappers 폴더를 확인해보자.
Leave a comment
